Intelligent Load Remote Capacity Verification

Model

ZYHF-48-II

The Intelligent Load Remote Capacity Verification System is an independently developed, highly integrated maintenance system of our company, featuring hardware modularization and an embedded microprocessor-based software architecture.
Composed of several monitoring modules and other auxiliary devices, it serves as a dedicated monitoring and maintenance system directly deployed in computer rooms and base stations for the collection and processing of data from storage batteries and similar equipment, with core functions including sampling, data processing and data relaying.
The system enables real-time monitoring and analysis of multiple parameters such as battery pack status and mains power supply, and executes adaptive responses accordingly. It uploads monitoring data to the upper-level monitoring platform via flexible networking methods including Ethernet and serial ports, while receiving remote adjustment and control commands issued by the platform. This allows the system to achieve the goal of unmanned on-site operation for remote charging and discharging maintenance of storage batteries.

Parameters

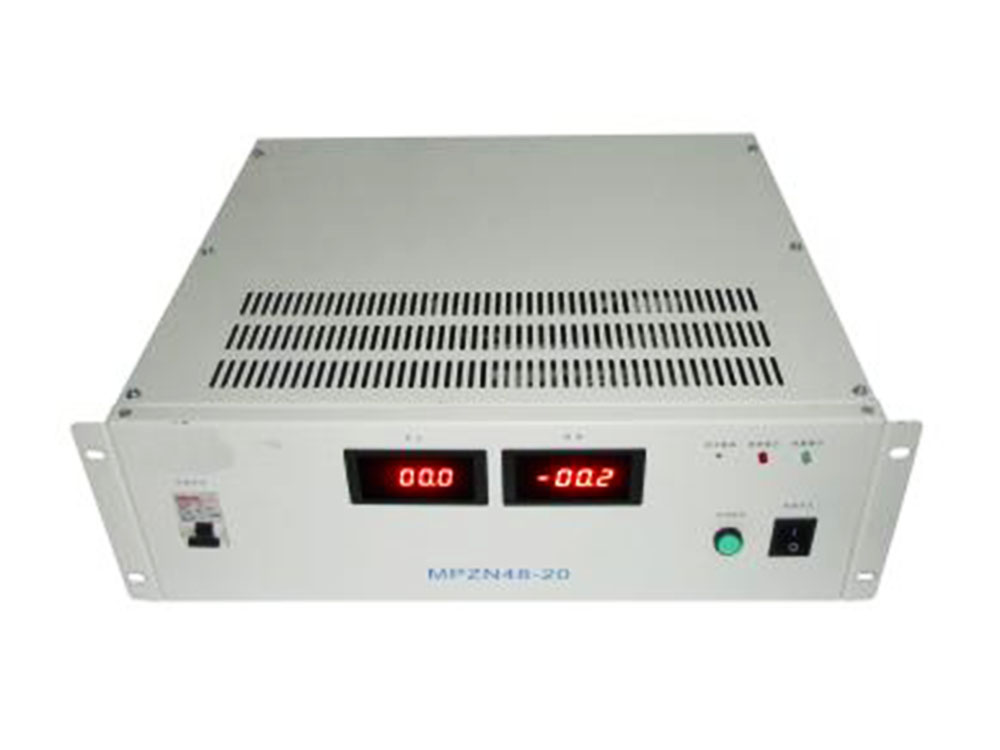

Intelligent Load Unit

Function	Performance Parameter
Discharge Unit	Power Supply Mode	DC36-72V
	Input Voltage	DC48V±15% (Customizable)
	Load Current	0-20A, 30A, 50A, 100A (Customizable)
	Test Accuracy	Voltage: 0.2%; Current: 0.5%
	Test Duration	0-12 hours per cycle
	Cooling Method	Forced Air Cooling
	Control Mode	Monitoring host control, automatic control

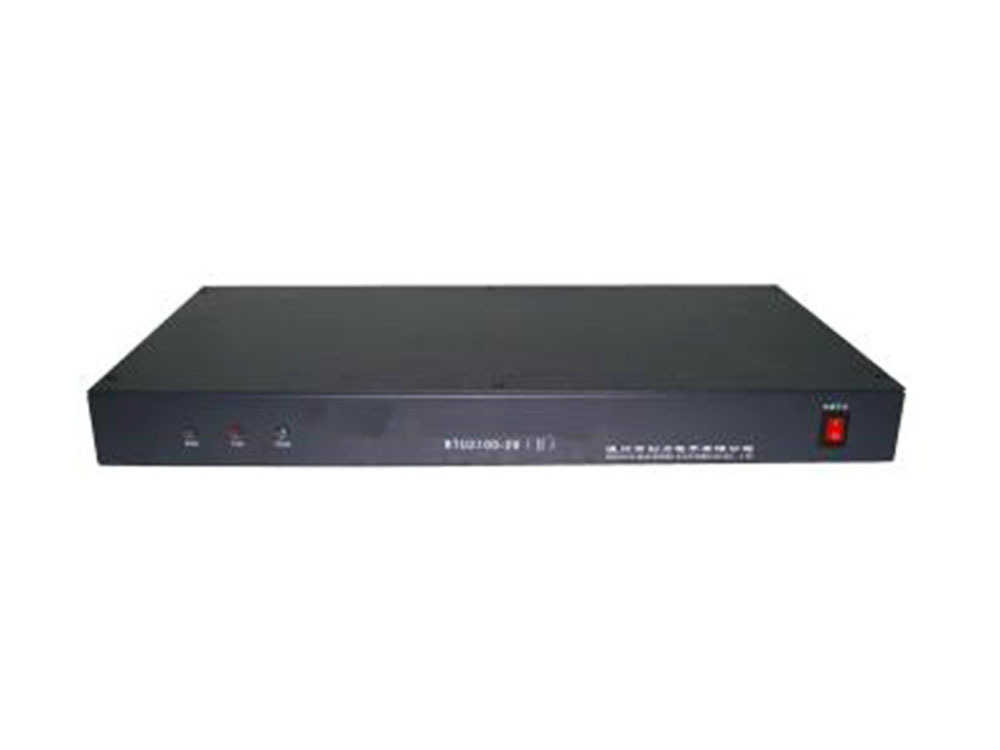

Storage Battery Parameter Measuring Instrument

Function	Performance Parameter
Battery Parameter Acquisition Unit	Power Supply Mode	DC48V
	Transmission Mode	RS232/RS485 Serial Port, Baud Rate: 9600bps
	Single Battery Voltage	Measurement Range	0～3V, 10～15V
	Single Battery Voltage –	Accuracy	0.2%
	Total Battery Voltage	Measurement Range	0～100V, 0～600V
	Total Battery Voltage	Accuracy	0.2V
	Single Cell Internal Resistance	Measurement Range	2V: 0～20MΩ; 12V: 0～200mΩ
	Single Cell Internal Resistance	Accuracy	±2%
	Current Measurement Range	0.1～100A/200A/300A (Optional)
	Temperature Measurement Range	-20℃～120℃

Control Host

Function	Performance Parameter
Main Control, Information Processing and Maintenance Unit	Power Supply Mode	DC48V
	Input Current	0-150A (Customizable)
	Control Mode	Monitoring host control, automatic control
	Number of Controlled Groups	2 groups of storage batteries and 2 groups of power supplies

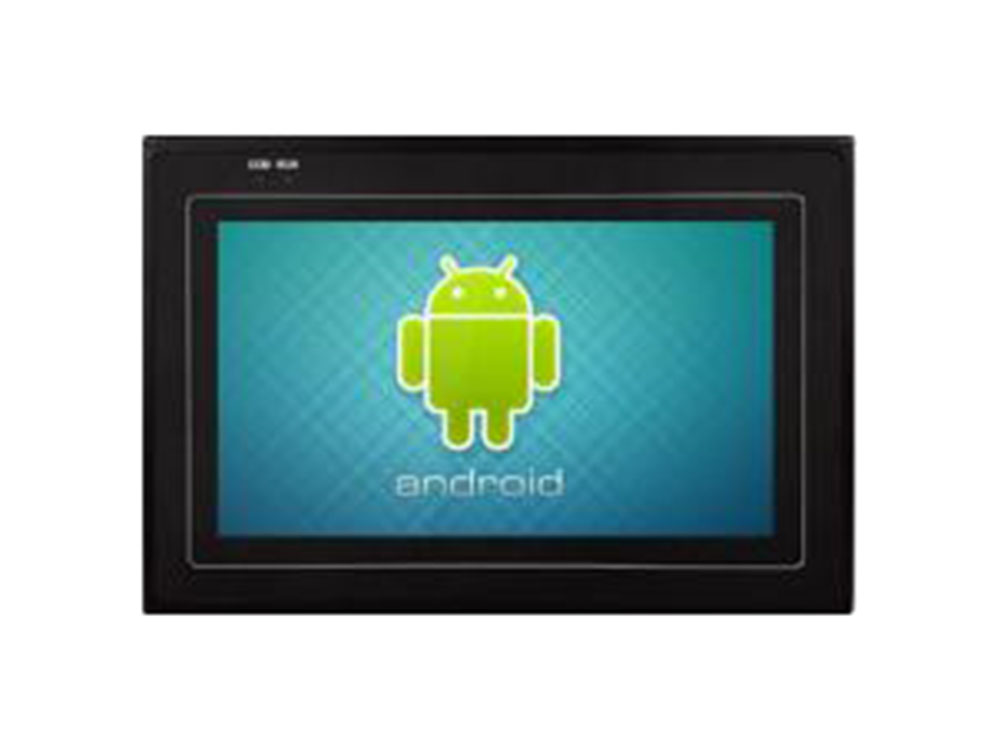

Monitoring Host

Function	Performance Parameter
Terminal Display	Number of Interfaces	4 RS232 Serial Ports, the first two of which can be used as RS485
	Number of Interfaces & Conversion Mode	1 USB Device Interface, 2 USB Host Interfaces
		1 100M Ethernet Interface
		1 MicroSD Interface, supporting external expansion
	Operating System	Android

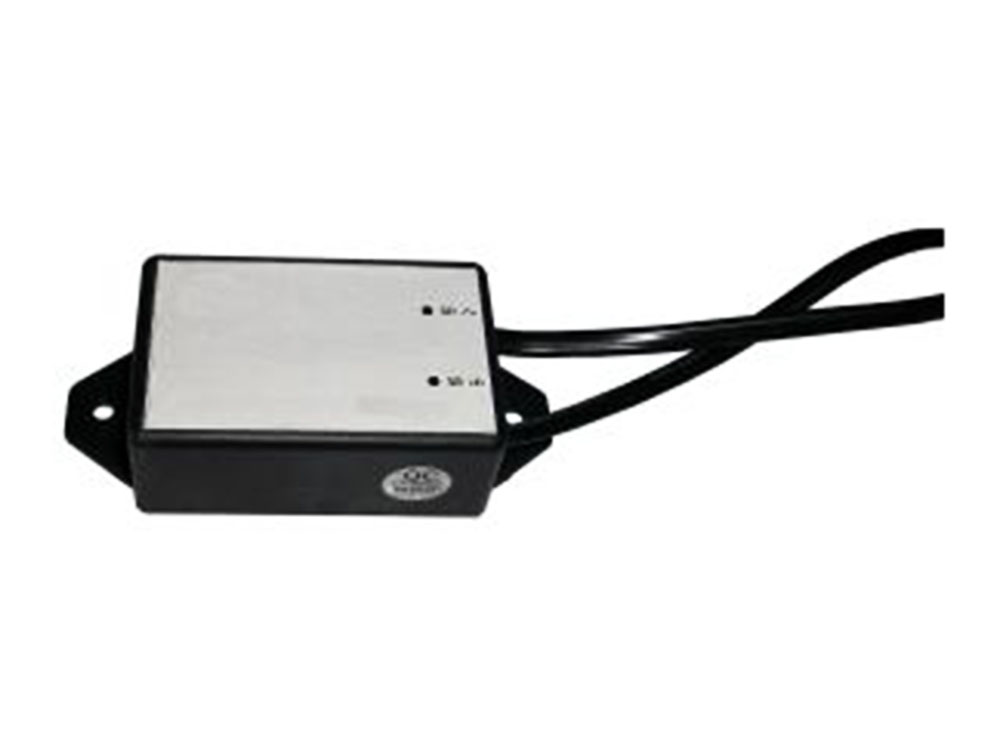

Mains Power Status Sampler

Function	Performance Parameter	Performance Parameter
Mains Power Acquisition Unit	Power Supply Mode	AC220V (Customizable)
