| Item | Specification |
| Operating Voltage | DC11–13V |
| Operating Current | ≤ 2A |
| Actuator | Solenoid Valve |
| Harness Interface | XH2 × 2.54 |
| Buckle Bearing Capacity | ≥ 600N |
| Buckle Bending Resistance | > 900N |
| Top Door Rod Force | ≥ 7N |
| Wire | |
| Red | DC12V |
| Black | GND |
| Yellow | STATE+ |
| Green | STATE- |
| Operating Temperature | -20 ~ 70°C |
| Materials | |
| Plastic Parts | ABS |
| Lock Shell | Q235 |
1.In locked state: Yellow wire and green wire are open circuit.
2.In unlocked state: Yellow wire and green wire are short circuit.

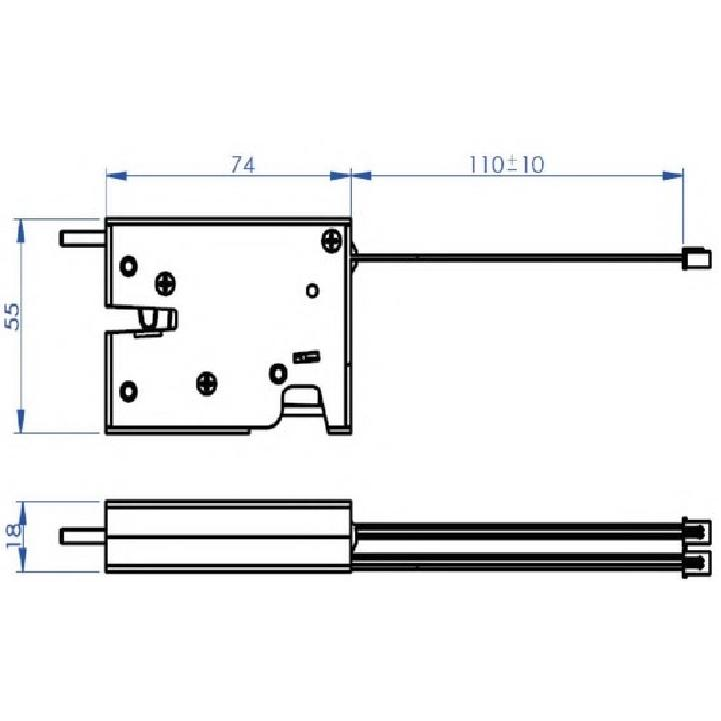

Lock body zise

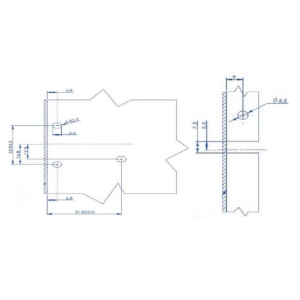

Lock Body Installation Size

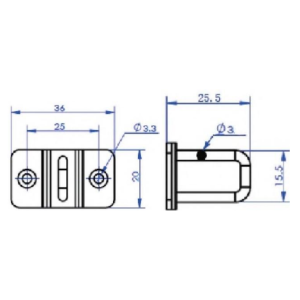

Buckle size
