| General features | Sensor compatibility | IVG-2L does not locate leakage sensing cables or similar cables |
| Maximum length | 500 meters | |
| Accuracy | 100% | |
| Environmental rating | Storage temperature | -40 ℃~60 ℃（0 ℉~140 ℉） |
| Operating temperature | -20 ℃~50 ℃（32 ℉~122 ℉） | |
| Humidity | 5%~95%（non-condensing） | |
| Power | 12/24VDC，3W | |
| Serial interface | Network configuration | RS-485 two-wire network; baud rates are configurable (default 9600); device address 0–255 (default 0) |
| Communication protocol | MODBUS RTU |
12VDC power
Cable sensitivity is adjustable
External dimension：1085937mm
Convenient 35mm DIN guide rail installation
Two relay output modes (NO-COM / NC-COM) are selectable
Robust anti-static and surge protection ensure a safer, more reliable operating system
Multiple baud rates are configurable; device addresses and baud rates are set by the software module, no switches
Practical and reliable twisted-pair serial RS – 485 communication, the unit can control sense cables up to 1200 meters, general industrial standard MODBUS protocol

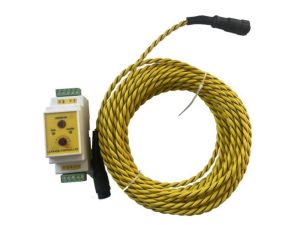

Two-core non-positioning detection cables have low cost and high reliability, and are suitable for various locations with water leakage risks. The IVG-2L detection cable is composed of two lightweight high-density polyethylene wires pressed around a spiral axis, which have strong mechanical properties, corrosion resistance and wear resistance; made of corrosion-resistant and non-toxic materials, in compliance with EU environmental standards.
1. Features of Non-Positioning Water Leakage Cable Products:

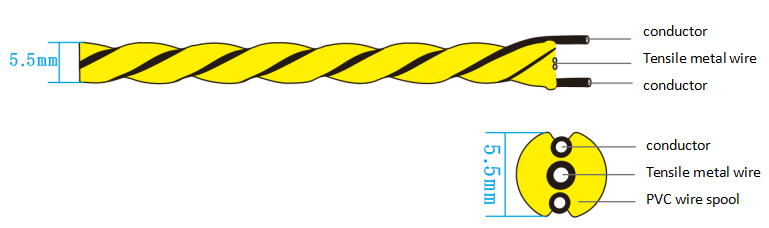

Technological Design
The water leakage cable adopts a two-core wire design and is universal for any water leakage detection system based on the short-circuit principle. The spiral structure design of the cable not only reduces environmental electromagnetic interference and lowers the false alarm rate, but also greatly improves the strength and service life of the cable; this cable is made of special materials, which have corrosion resistance, wear resistance and can be reused.
Cascade Convenience
The IVG-2L water leakage detection cable features a unique integrated manufacturing process for waterproof plastic connectors, which can be cascaded to extend and detect any point of water coverage on the cable. It is available in various length specifications to meet the needs of various detection ranges. The cable has strong flexibility and can be bent and installed to any degree.
2. Basic Parameters of IVG-2L Water Leakage Cable:
| Cable diameter | 5.5 mm |  |
| Material | PVC | |
| Cable color (skeleton) | Yellow (customizable color) | |
| Cable weight | 36g/m | |
| Tensile strength | ≥90kg | |
| Fire resistance | V0 level flame retardant | |
| Maximum exposure temperature | 85℃ | |
| Alarm type | Non-positioning (detects any point on the cable) |
