| Model | YZ1-IBLE-40 | YZ1-IBLE-40M | YZ1-IBLE-63 | YZ1-IBLE-63M | |
| parameter | Pole Number | 1P+N | |||
| Rated Voltage Ue(V) | AC 230 | ||||
| Rated Current (A) | 6～40 (Adjustable) | 6～63 (Adjustable) | |||
| Rated Insulation Voltage Ui(V) | 400 | ||||
| Rated Impulse Withstand Voltage Uimp (kV) | 2.5 | ||||
| Rated Operating Frequency f(Hz) | 50 | ||||
| Rated Residual Current I△n (mA) | 30/200 | ||||
| Rated Residual Making and Breaking Capacity Im (A) | 500 | ||||
| Instantaneous Trip Type | Electronic | ||||
| Residual Current Trip Characteristic | Type AC | ||||
| Reference Ambient Temperature (℃) | 30 | ||||
| Nominal Thread Diameter d (mm) | M4 | ||||
| Mechanical Life (Times) | 100000 | ||||
| Electrical Life (Times) | 100000 | ||||
| Protection | Overload Delay Protection | 1A～1.5In (Adjustable), default 1.5In | |||
| Overload Delay Protection Action Time | 1～3600 seconds (Adjustable), default action at 15 seconds | ||||
| Short-Circuit Instantaneous Protection | No action at 4In; Action at 7In | ||||
| Short-Circuit Instantaneous Protection Action Time | Agreed Time ≤100ms | ||||
| Overvoltage Protection | 240～280V (Adjustable), default 275V | ||||
| Overvoltage Protection Action Time | 1～15 seconds (Adjustable), default action at 9 seconds | ||||
| Undervoltage Protection | 150～200V (Adjustable), default 160V | ||||
| Undervoltage Protection Action Time | 1～10 seconds (Adjustable), default action at 3 seconds | ||||
| Leakage Protection | 30mA | ||||
| Leakage Protection Action Time | ≤100ms | ||||
| Over-temperature Protection | 1～200℃ (Adjustable), default action at 85℃ | ||||
| Over-temperature Protection Action Time | 1～15 seconds (Adjustable), default action at 10 seconds | ||||
| Remote Control | Remote Opening | Controlled by remote Web terminal or APP to open the circuit breaker | |||
| Remote Closing | Controlled by remote Web terminal or APP to close the circuit breaker | ||||
| Measurement | Voltage | 0.7Un≤U≤1.3Un, Accuracy ±0.5% | |||
| Current | I≤0.05In, Accuracy ±1.5%; 0.05In<I≤0.2In, Accuracy ±0.75%; 0.2In<I≤1.2In, Accuracy ±0.5% | ||||
| Power | 0.05In≤I≤0.1In, Accuracy ±2%; 0.1In<I≤1.2In, Accuracy ±1% | ||||
| Electric Energy | 0.05In≤I≤0.1In, Accuracy ±2%; 0.1In<I≤1.2In, Accuracy ±1% | ||||
| Communication | Communication Interface | RS485 (Standard Configuration) | |||
| Communication Protocol | Modbus-RTU | ||||
| Communication Rate | Default 9600bps, optional 2400bps, 4800bps, 9600bps | ||||

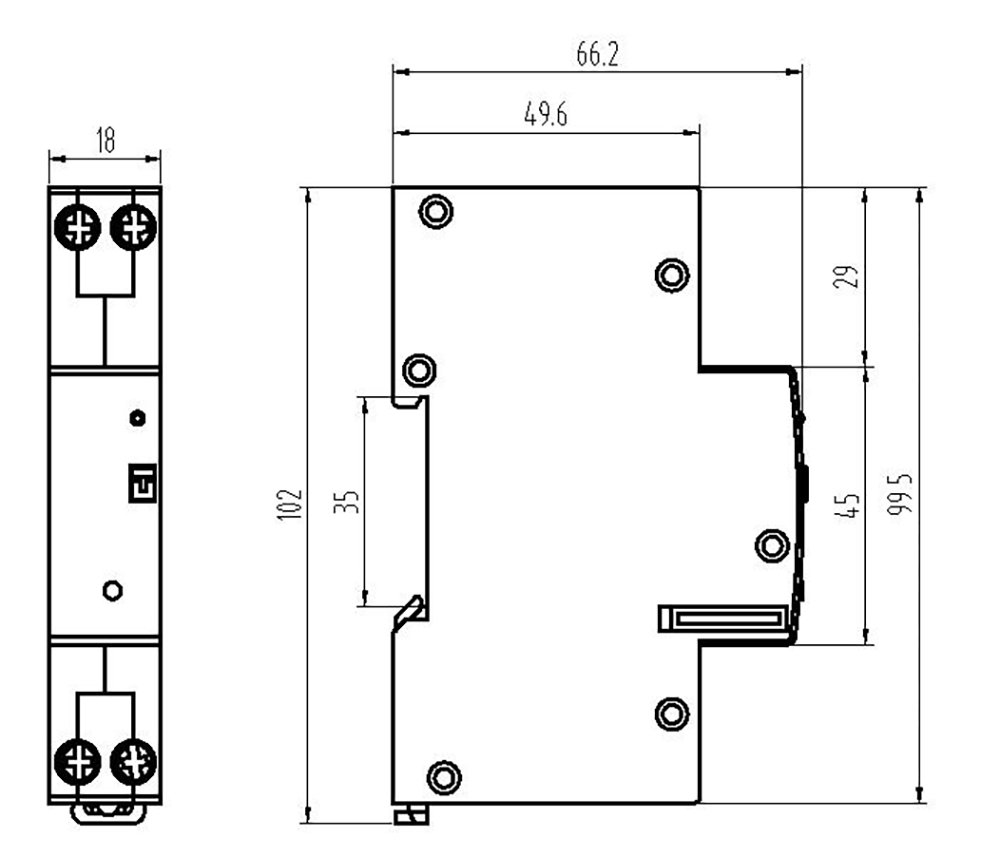

Dimension Drawing of YZ1-IBLE-40 (M)

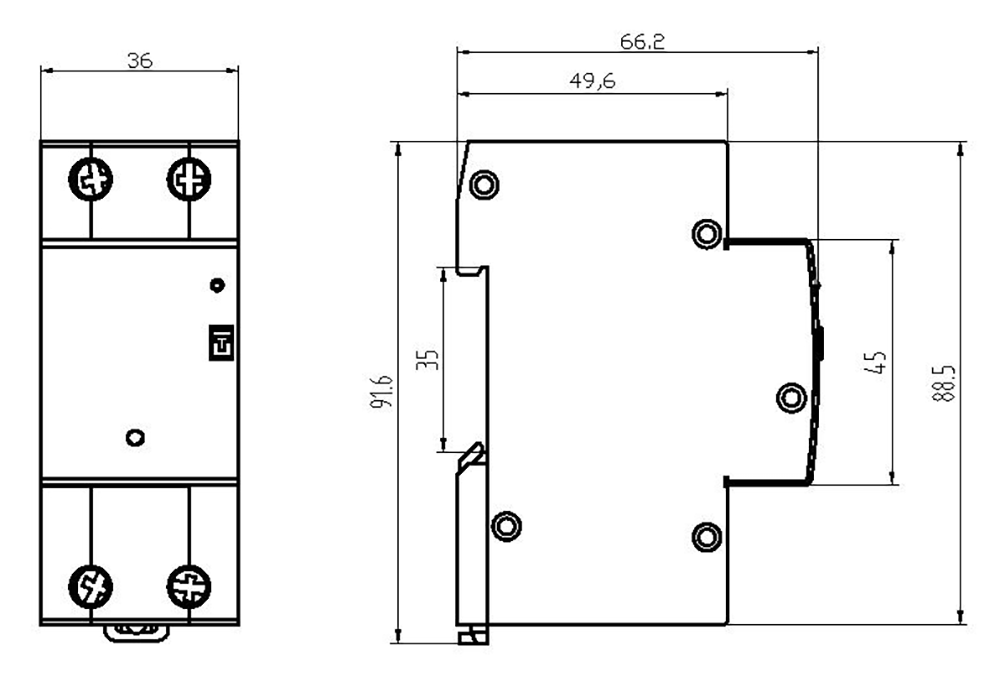

Dimension Drawing of YZ1-IBLE-63 (M)
