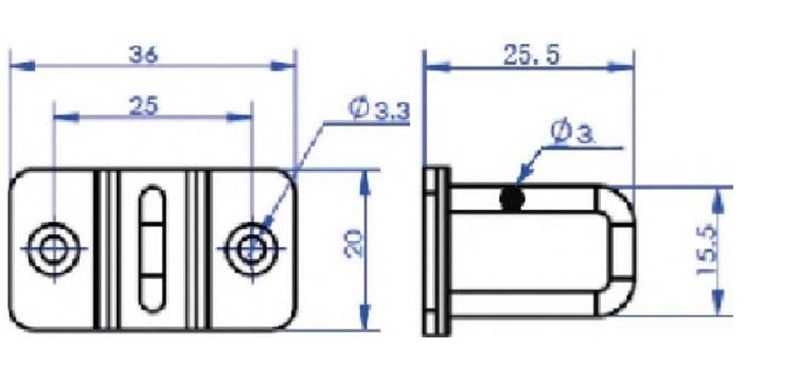

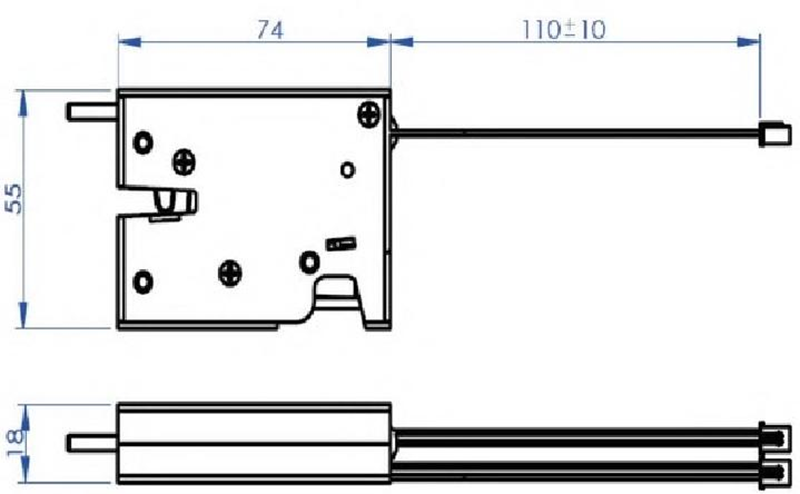

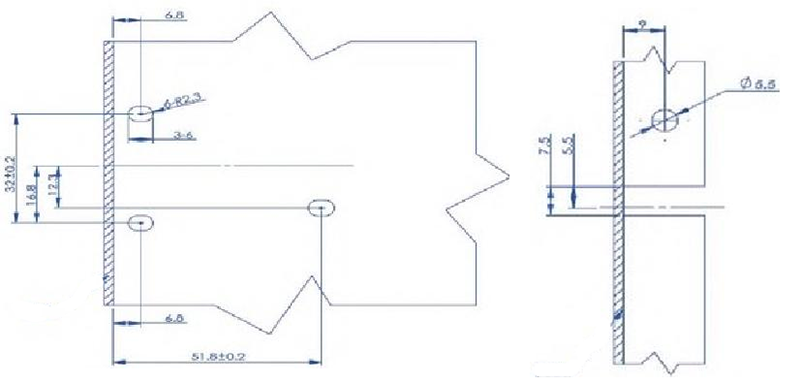

Smart Door Lock Series DS635-4B

Unlocking Method: Power-on Unlocking, Emergency Unlocking Technical Parameters: Operating Voltage: DC5V Operating Current: ≤0.3A Power Supply Time: 15S Communication Interface: DO/DI Wire: UL2464/26AWG/ L2000 Operating Temperature: -40~60°C Protection Level: IP65 (Front Side)

YZIBx Series IoT Circuit Breaker is an intelligent circuit breaker, suitable for low-voltage power grid lines with AC 50/60 Hz, rated voltage AC 230V/400V (customizable), and rated current up to 63A. This product features remote switching on/off, overload and short-circuit protection, over-voltage and under-voltage protection, over-temperature protection, electronic overload protection, residual current monitoring, phase failure protection, etc. Equipped with an RS485 communication interface, when paired with an intelligent gateway, it can upload real-time data, operating status, line faults, alarms and other information to the electrical safety IoT supervision platform in a timely manner. It realizes data monitoring, hidden danger management, energy consumption management and power consumption optimization of the power distribution system, effectively enhancing the comprehensive perception ability of the lines and improving the safety and reliability of power supply.

Name：Parameter Supply Voltage：5~36V DC Supply Current：<0.1A Temperature Range：-40℃~+125℃ Humidity Range：0~100%RH Temperature Accuracy：±0.3℃
